OPTIS™ Next Imaging Systems

OCT Imaging and Coronary Physiology on One Platform

OPTIS™ Next Imaging Systems
Next Imaging Systems

OPTIS™ Next Imaging Systems

OPTIS™ Integrated Next Imaging System and OPTIS™ Mobile Next Imaging System are Abbott’s imaging systems that are available with Ultreon™ Software. The OPTIS™ Next Systems use high-powered processors that support artifical intelligence (AI) technology for faster information display and workflow efficiency.


OPTIS™ Integrated Next Imaging System: It's always on, it's always ready

OPTIS™ Integrated Next System is installed in a single cath lab ready to perform intravascular imaging and coronary physiology.

OPTIS Integrated Next Imaging System

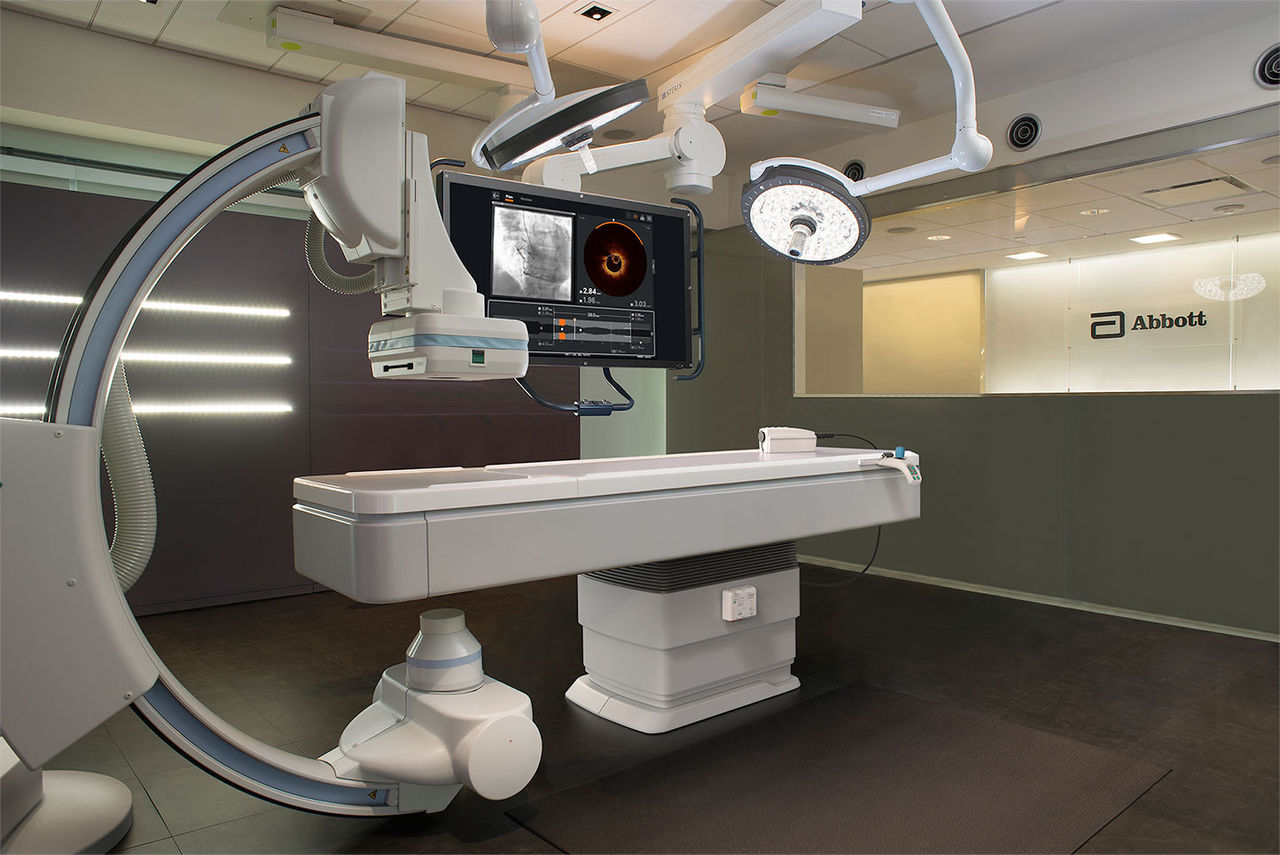

OPTIS™ Integrated Next Imaging System set up. Components shown include Wi-Box™ AO Transmitter, DOC, TSC, and OCT user interface display on the Boom Monitor.

OPTIS™ Integrated Next System provides benefits to the physician:

  • Save setup time and start the PCI procedure right away because the system is always on and ready to use
  • Provides the user with a wireless tableside controller (TSC) for OCT and RFR/FFR acquisition and review at a procedure table. The TSC also allows for single-operator control of the procedure if needed.
  • Streamlines the PCI procedure by having OCT and coronary physiology always available to guide PCI decision-making
  • Compatible with Dragonfly OpStar™ Imaging Catheter, Dragonfly™ OPTIS™ Imaging Catheter


Consideration for use:

The OPTIS™ Integrated Next System is recommended for imaging and physiology needs, for busy cath labs and high PCI volume centers when the availability of OCT and/or coronary physiology is always needed without advance arrangements.

OPTIS Tableside Controller Next (TSC)

Tableside Controller (TSC)

OPTIS™ Mobile Next Imaging System: Flexibility for multiple cath labs

OPTIS™ Mobile Next Imaging System is a transportable system designed for use in multiple cath labs with easy pre-installed connections.

OPTIS Mobile Next Imaging System
OPTIS™ Mobile Next Imaging System set up with an added Ultiri™ Measurement System on the table side. Components shown include Wi-Box™ AO Transmitter, DOC, TSC, and OCT user interface display on the Boom monitor





The OPTIS™ Mobile Next System provides the same functionality as the OPTIS™ Integrated Next System, but provides mobile system workflow via an easily transportable cart to serve multiple cath labs.

  • Integrates into the cath lab via easy pre-installed connections
  • Accommodates staggered PCI procedures at different times or on different days
  • One transportable cart to support PCI in multiple cath labs
  • Compatible with Dragonfly OpStar™ Imaging Catheter, Dragonfly™ OPTIS™ Imaging Catheter


Consideration for use:

The OPTIS™ Mobile Next Imaging System is recommended for multiple cath labs that require flexibility or for busy cath labs that already have an OPTIS™ Integrated Next Imaging System and need an additional system as a back up.


OPTIS™ Integrated Next Imaging System Instructions for Use (IFU). OPTIS™ Mobile Next IFU. Ultreon™ 2.0 Software IFU. Refer to IFUs for additional information.
