Hi-Torque Winn™

Specialty Peripheral Guide Wires

Hi-Torque Winn™

Request a Hands-On Demonstration

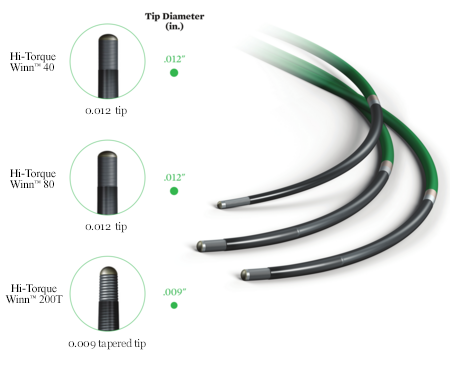

The Winn™ Guide Wire Family of specialty guide wires enables crossing of challenging lesions with 3 options for guide wire tip stiffness:

Hi-Torque Winn™ 40 Guide Wire
Hi-Torque Winn™ 80 Guide Wire
Hi-Torque Winn™ 200T Guide Wire

3 types of Winn™ peripheral intervention specialty guidewires enable crossing of challenging lesions

Feel-Cross-Winn

Feel

The excellent tactile feedback and deliverability¹ are due to the combination of:

Intermediate polymer sleeve
Exposed shapeable tip coils (distal 5 mm)

Cross

Core-to-tip wire design, with transitionless durasteel core taper, enables pushability as well as outstanding torque over the length of the wire¹
Hydrophilic coating provides excellent lubricity and ease of wire advancement¹

Winn

Three distinct guide wires offer a selection of tip loads and penetration power
There are varying tip load options of 5.1 g, 11.3 g, and 14.3 g
The guide wires come in lengths of 190 cm and 300 cm

Ordering Information

Product	Part Number	Diameter	Length	Tip Load	Tip Style
Hi-Torque Winn™ 40	1012466	0.014 in	190 cm	5.1 g	Core-To-Tip
Hi-Torque Winn™ 40	1012467	0.014 in	300 cm	5.1 g	Core-To-Tip
Hi-Torque Winn™ 80	1012468	0.014 in	190 cm	11.3 g	Core-To-Tip
Hi-Torque Winn™ 80	1012469	0.014 in	300 cm	11.3 g	Core-To-Tip
Hi-Torque Winn™ 200T	1012474	0.014 in	190 cm	14.3 g	Core-To-Tip
Hi-Torque Winn™ 200T	1012475	0.014 in	300 cm	14.3 g	Core-To-Tip

Data on file at Abbott.

Reference

Tóth GG, Yamane M, Heyndrickx GR. Heart. 2015;101:645–652.

MAT-2405511 V1.0

Information contained herein for distribution in Australia and New Zealand only.
CAUTION: These products are intended for use by or under the direction of a physician. Prior to use, reference the Instructions for Use, inside the product carton (when available) or online for more detailed information on Indications, Contraindications, Warnings, Precautions and Adverse Events. Illustrations are artist's representations only and should not be considered as engineering drawings or photographs.
