Stealth 360™

Peripheral Orbital Atherectomy System

Stealth 360 Peripheral Orbital Atherectomy Device
Features

A Specialized Approach to PAD

Stealth 360™ Peripheral Orbital Atherectomy System (OAS) offers tools to address various calcification scenarios, low-profile advantages, and multiple access solutions.

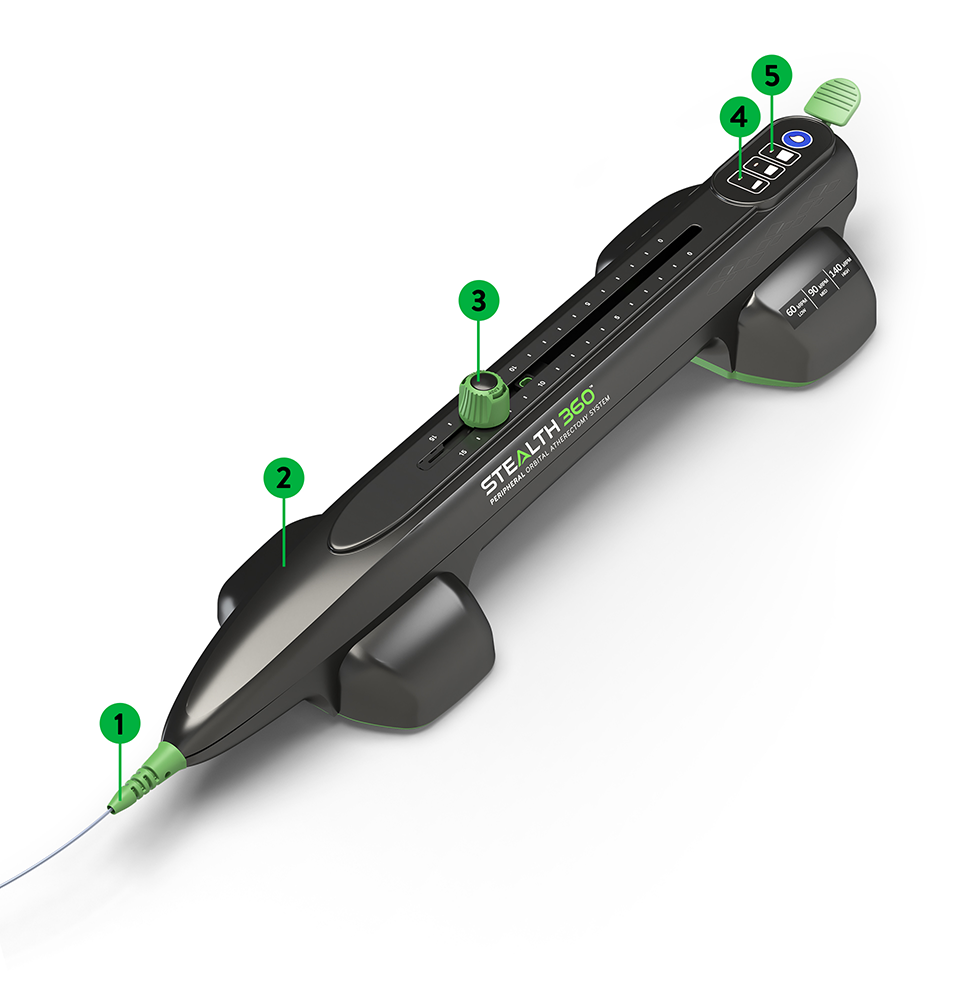

Explore Stealth 360™ Device

Explore Stealth 360

Treat more patients with 4-6 Fr sheath sizes

Diamondback 360 Sheath Size

Electric-powered handle

Diamondback 360 Handle

One-touch start button, makes device power-up effortless

Diamondback 360 Start Button

GlideAssist™ mode is featured on the 1.25 micro crown and enables the crown to spin at a slow speed (5k RPM) reducing friction to facilitate tracking and provide easier removal of the device

Diamondback 360 Speed Control

Convenient three-speed controls allow for quick speed adjustments within the sterile field

Diamondback 360 GlideAssist for Microcrown


Stealth 360™ Crown Options

Eccentrically mounted diamond-coated crowns with bi-directional capabilities treat a wide range of vessels, enabling single device treatment of multiple lesions and vessel sizes.

Micro Crown
  • Designed with flexibility for tortuous vessels and tight bends below-the-knee1
  • GlideAssist™ mode for the 1.25 Micro Crown enables the crown to spin at a slow speed (5k RPM) for easier tracking and removal of the device over the guide wire1
Diamondback 360 Micro Crown for Tortuous Vessels & Tight Bends
Solid Crown
  • Designed for moderate to severe calcified lesions1
  • Delivers efficient sanding in calcification2
  • Diamond-coated surface area allows for short run times1
Diamondback 360 Solid Crown for Severe Calcification
Classic Crown
  • The most flexible of our crown configurations1
  • Designed for vessel bends, ostial lesions and distal below-the-knee procedures1
Diamondback 360 Classic Crown for Flexible Configuration

Stealth 360™ System Components

OAS Pump for Atherectomy Pumping Mechanism

The OAS pump mounts directly onto an I.V. pole and provides power and the pumping mechanism for the Stealth 360™ System.

Stealth 360 OAS pump

ViperSlide™ Atherectomy Device Lubricant

ViperSlide™ is an exclusive lubricant for use with Abbott's Orbital Atherectomy Systems. ViperSlide™ increases the lubricity, therefore reducing friction between the Atherectomy device shaft and the ViperWire™ Advance Guide Wire.

Stealth 360 ViperSlide™ Lubricant

ViperWire Advance™  and ViperWire Advance™ with Flex Tip Peripheral Guide Wires

ViperWire Advance™ and ViperWire Advance™ with Flex Tip Peripheral Guide Wires are designed specifically for the Stealth 360™ Peripheral Orbital Atherectomy Systems to facilitate proper device placement within the peripheral artery to enable orbital gain during PAD treatment.

Stealth 360 ViperWire Advance™ Peripheral Guide Wires

References

  1. Data on file at Abbott.
  2. Adams GL, et al. Optimal Techniques with the Diamondback 360 System Achieve Effective Results for the Treatment of Peripheral Artery Disease. J Cardiovasc Transl Res. 2011 Apr; 4(2):220-9.
