Coronary Microvascular Dysfunction (CMD)

Go Beyond The Angiogram To Get To The Root Cause Of Persistent Angina

Coronary Microvascular Dysfunction (CMD)

Angiography Doesn't Tell You The Whole Story

Approximately 112 million people globally are affected by angina and undergo coronary angiography, the primary diagnostic test for angina.1

Too often patients with ischemia and no obstructive coronary artery disease (INOCA) on angiography — remain undiagnosed.2

Coronary Microvascular Dysfunction (CMD)3 is defined as impaired blood flow to the microcirculation. A clear diagnosis and optimized treatment plan can improve outcomes for these patients at high risk for major adverse events (MACE).4

up to 50%

How A Microvascular Dysfunction Diagnosis Benefits Patients

The CorMicA (CORonary MICrovascular Angina) study revealed that patients may benefit when CMD is accurately diagnosed and appropriately treated:4

  • Adequate evaluation and optimal treatment of patients who have INOCA can relieve patient symptoms, improve Quality of Life (QoL) and may reduce healthcare costs.4,6
  • An accurate CMD diagnosis can help reduce healthcare resource consumption,7 resulting in lower costs for hospitals and patientswith a savings from $2,100 (Netherlands) to $7,300 (U.S.) per hospitalization avoided (2017 costs).9
  • An economic analysis of the CorMicA study showed that a comprehensive physiology assessment is cost-effective compared to standard care (medical therapy and cardiac rehabilitation care) at 1-year follow-up.10

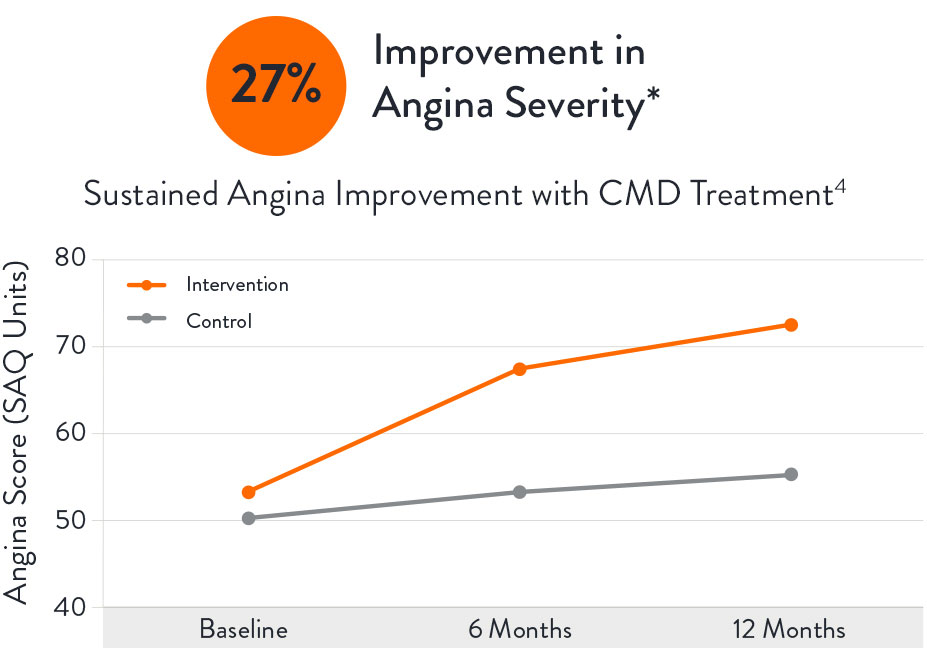

27 improvement in angina severity in 1 year

Challenges Diagnosing the Underlying Causes Of Chest Pain

Ischemic heart disease continues to be the leading cause of death globally.11 Yet chest pain—while often ischemic in nature—could have many etiologies, as illustrated.When chest pain is caused by ischemia, proper management depends on accurately identifying and treating the underlying cause of angina.

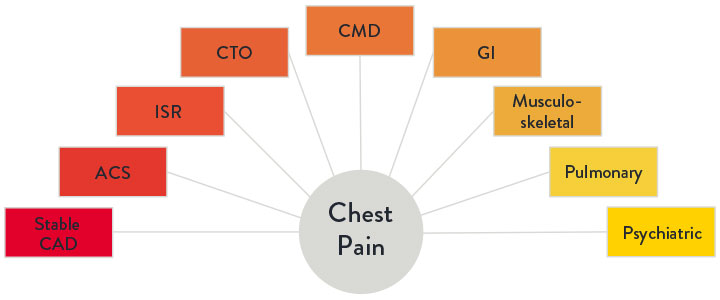

  Chest Pain

STRUCTURAL CAUSES7
  • In-stent restenosis
  • Stent thrombosis
  • Progression of atherosclerotic disease in other segments
  • Incomplete revascularization
  • Diffuse atherosclerotic disease without focal stenosis
  • Presence of myocardial bridges
FUNCTIONAL CAUSES7
  • Epicardial vasospasm
  • Coronary microvascular dysfunction
  • Stent-related mechanical stretch of the arterial wall

The Common Diagnosis Of INOCA

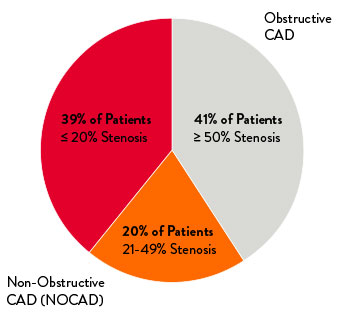

Only 41% of patients assessed for angina are found to have obstructive chronic Coronary Artery Disease.13 The majority, 59% of patients, assessed for angina are found to have no angiographic abnormalities, but still have symptoms of a coronary disorder.4,5

 INOCA Diagnosis Chart

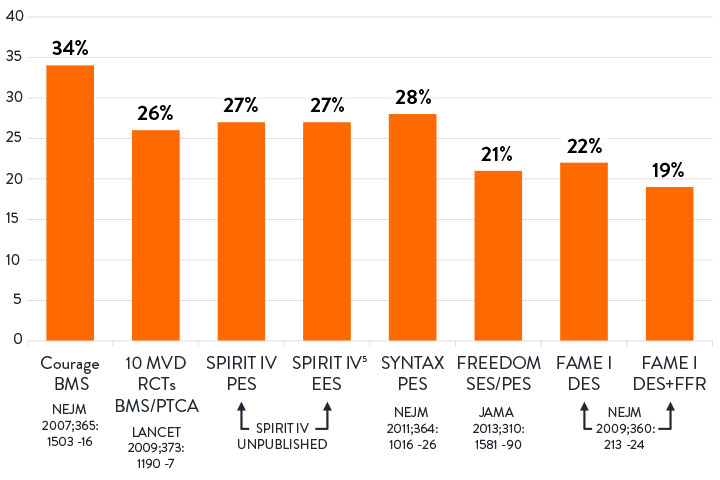

20-30% of patients experience recurrent angina in 1 year after percutaneous coronary intervention (PCI).12

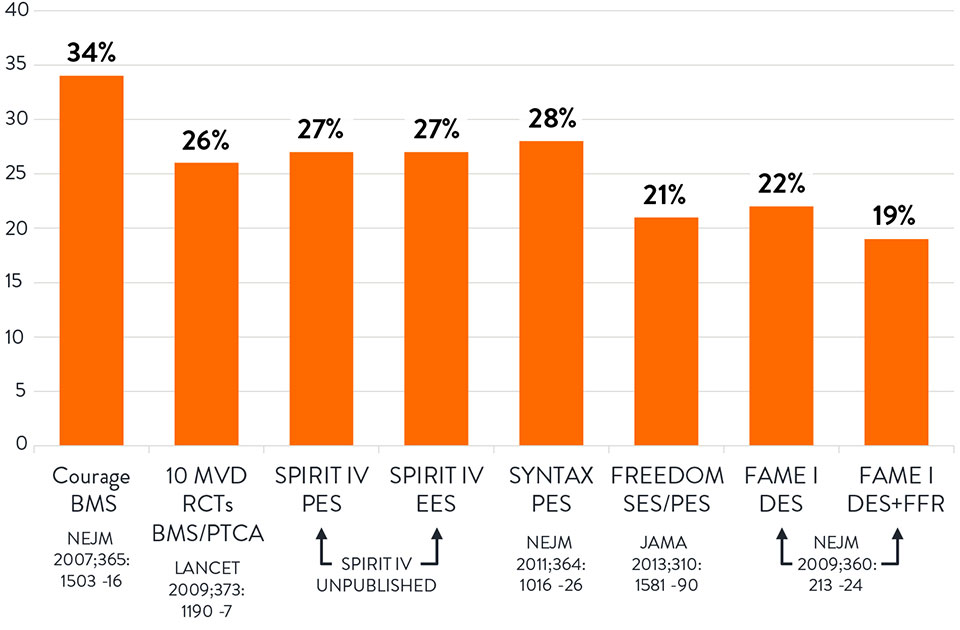

 20-30% of patients experience recurrent angina

Without a clear diagnosis and treatment, patients may experience recurrent hospitalizations, poor functional health, and adverse cardiovascular outcomes.7

*According to the Seattle Angina Questionnaire score.
